Managing Variables

Canvas provides a secure key-value store that lets your plugins access configuration data — including sensitive secrets such as API tokens — without hardcoding values into source files. Configuration values are declared in your plugin’s CANVAS_MANIFEST.json as variables, set at install time or through the Admin UI, and read from self.secrets at runtime.

Each variable can be marked sensitive (treated like a secret: not displayed in admin or CLI listings) or non-sensitive (a regular configuration value, displayed in plaintext for verification). All variable values are write-only through the CLI and API.

Declaring Variables in CANVAS_MANIFEST.json #

Variables are declared in your plugin’s CANVAS_MANIFEST.json file under the top-level variables field. Each variable is an object with a name and an optional sensitive flag (defaults to false). Variables marked as sensitive: true are write-only and behave like secrets. These declared variables become available for configuration in the Canvas Admin UI when the plugin is installed.

{
  "sdk_version": "0.1.4",
  "plugin_version": "0.0.1",
  "name": "live_notifications",
  "description": "Edit the description in CANVAS_MANIFEST.json",
  "components": {
    "handlers": [
      {
        "class": "live_notifications.handlers.my_handler:Handler",
        "description": "A handler that does xyz..."
      }
    ]
  },
  "variables": [
    {"name": "API_TOKEN", "sensitive": true},
    {"name": "WEBHOOK_URL"},
    {"name": "LOG_LEVEL", "sensitive": false}
  ],
  "tags": {}
}

Legacy secrets array (deprecated) #

The flat secrets array is still accepted for backwards compatibility:

"secrets": ["API_TOKEN"]

It emits a deprecation warning during canvas validate-manifest and is mapped internally to variables entries with sensitive: false. To preserve sensitive treatment, migrate to the variables schema with sensitive: true and re-install the plugin.

⚠️ Pre-existing values default to non-sensitive. Any plugin secret that existed before Canvas 1.305.0 — or any value configured via the legacy secrets: array — is stored with sensitive: false. It will appear in plain text in the Admin UI until the owning plugin is migrated to the variables schema with sensitive: true and re-installed.

Configuring Variables from the CLI #

Set values with canvas config set, passing KEY=value pairs. Each value keeps the sensitivity the manifest declares for it.

For a plugin deployed with canvas deploy, Canvas Platform stores the values for each instance and a configure deployment brings them to the running plugin:

$ canvas config set acme__my_plugin API_TOKEN=abc123 LOG_LEVEL=info --instance acme-staging

Values stored for an instance before the plugin is installed there wait for its first deploy, so a plugin that needs a value from its first run can have it set first:

$ canvas deploy my-plugin/acme__my_plugin --push-only
$ canvas config set acme__my_plugin API_TOKEN=abc123 --instance acme-staging
$ canvas deploy my-plugin/acme__my_plugin --instance acme-staging

Clear a value with canvas config unset:

$ canvas config unset acme__my_plugin LOG_LEVEL --instance acme-staging

Listing configured values #

Run canvas config list <plugin_name> to see which variables are configured for a plugin. Each variable is rendered as [set] or [not set], with a (sensitive) annotation for sensitive variables. Values themselves are never displayed in the listing.

$ canvas config list my_plugin
  API_TOKEN  [set]  (sensitive)
  LOG_LEVEL  [not set]

To read a value, use the Django Admin UI (access is gated by managing-user permissions).

The --variable flag, canvas config list sensitive marking, and Admin UI masking require Canvas CLI 0.146.0 or newer. Upgrade with pip install --upgrade canvas.

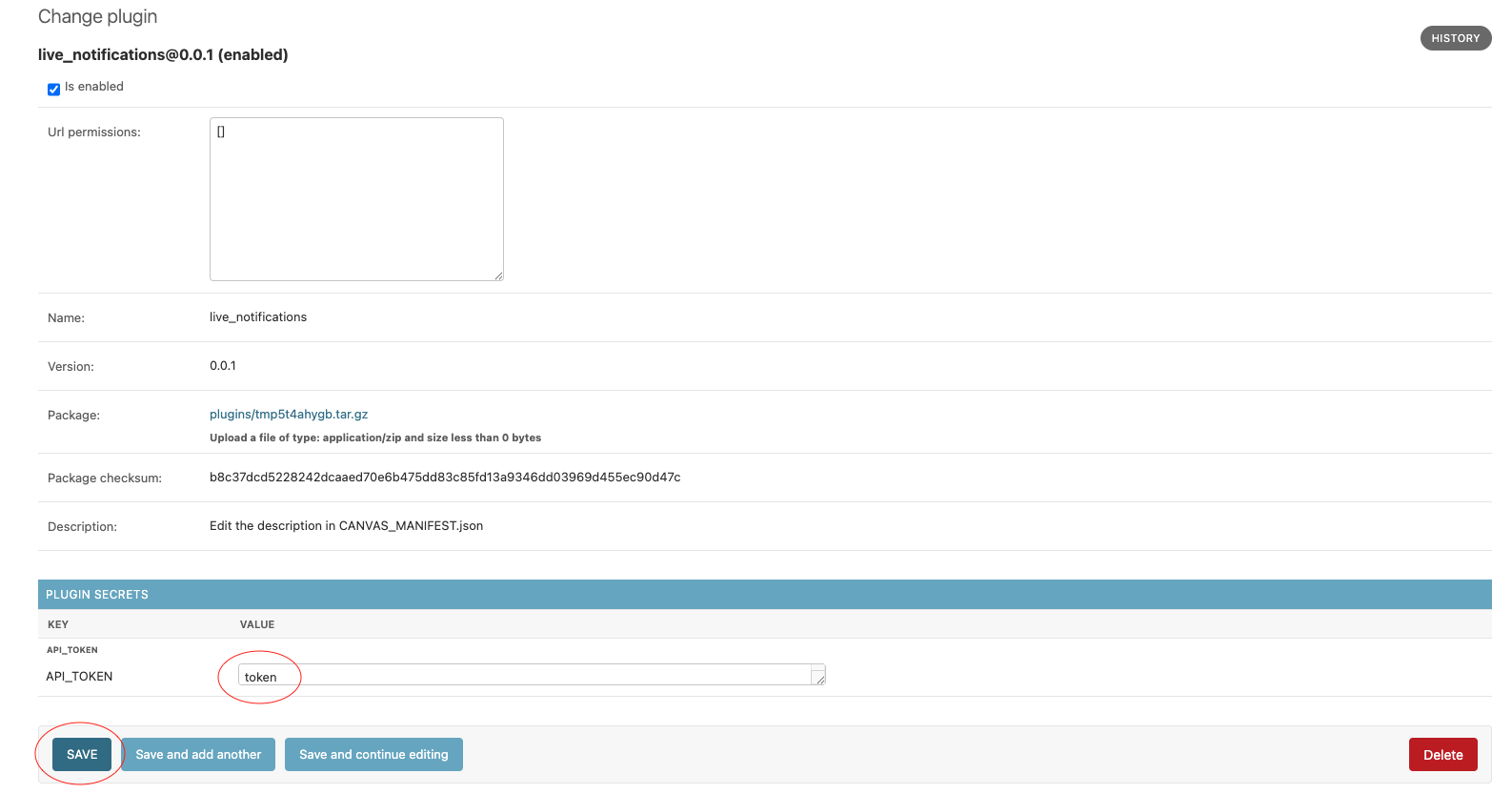

Configuring Variables in the Admin UI #

After install you can also set values through the Admin interface.

Navigation path: Home › Plugin_IO › Plugins › (your plugin)

Or, go directly to:

https://<your_canvas_instance>/admin/plugin_io/plugin/<plugin_id>/change/

On this page, you will find input fields for each variable defined in your manifest. Sensitive values display as SENSITIVE and are no longer rendered in the form HTML — submit a new value to overwrite, or leave the field blank to keep the existing value. Non-sensitive values display their current value and can be edited inline.

Sensitive variables can be protected by managing user permissions. Only users explicitly assigned as “managing users” for a plugin can view or modify its sensitive variables (as well as other sensitive settings like the plugin package file download link). Other users can see basic plugin details and enable or disable plugins, but they will not be able to access or change sensitive variable values. To add or remove managing users for a plugin, use the “Managing users” section on the plugin detail page in the Admin UI. This ensures that sensitive configuration, such as API tokens, remains visible only to authorized personnel.

Accessing Variables in Your Plugin #

All variables — sensitive and non-sensitive alike — are exposed to your plugin code through self.secrets, a Python dictionary keyed by variable name:

from canvas_sdk.handlers import BaseHandler
from canvas_sdk.effects import Effect

class MyHandler(BaseHandler):
    def compute(self) -> list[Effect]:
        api_token = self.secrets["API_TOKEN"]
        webhook_url = self.secrets["WEBHOOK_URL"]
        log_level = self.secrets["LOG_LEVEL"]
        ...

This access pattern is unchanged from earlier Canvas versions, so migrating a plugin from the legacy secrets: array to the new variables: schema requires no handler code changes.

Both steps are required. self.secrets["KEY"] returns a value only after you have:

1. Declared the key in CANVAS_MANIFEST.json.
2. Set a value for it, with the CLI or on the plugin configuration page in the Admin UI (/admin/plugin_io/plugin/).

If either step is missing, the lookup returns no value.

Configuring SimpleAPI credentials #

A SimpleAPI route that authenticates with APIKeyAuthMixin reads its key from the simpleapi-api-key secret, unless the route sets a different name in API_KEY_SECRET_NAME. Declare that secret, set its value in the secrets Admin UI, then send the same value in the Authorization header of each request to the route. If the configured secret and the header value do not match, or the secret has no value set, the endpoint responds with 401 Unauthorized (“Provided credentials are invalid”).
